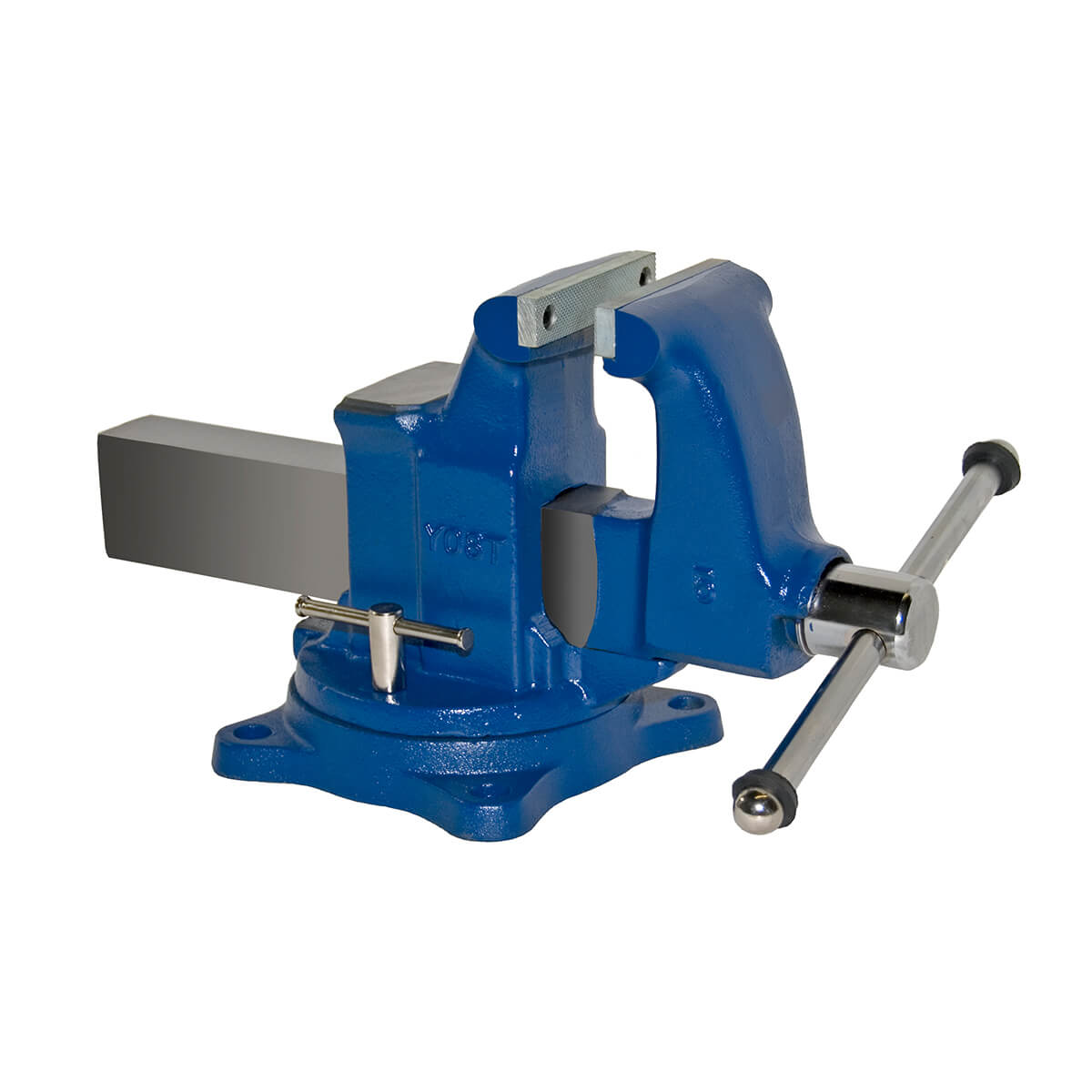

Yost Model 205 5 Inch Heavy Duty Machinist Vise with Swivel Base

The Yost 205 5" machinist vise with swivel base has an extra-large jaw opening and throat depth, mounts to a workbench to provide clamping action for heavy-duty applications, meets Federal Specification GGG-V-410B Type VI Class 2. The 360-degree swivel base adjusts the direction of the jaws for proper placement. Hand-tightening the lock knob on the base secures its position. The ductile iron body is durable and strong for extended life. The hardened-steel jaws have grooves for enhanced grip and can be replaced when worn. The jaws draw closer together or farther apart by turning the vise handle clockwise or counterclockwise.

The main screw that controls the jaws has been continuous rolled for high strength. A rubber washer on either side of the handle prevents unwanted sliding when turning, and the balls on each end unscrew to enable replacement of the handle if worn. The base has four 0.73"-diameter holes for mounting hardware (not included).

• Conforms to Fed. Spec. GGG-V-410B Type VI Class 2
• Meets NSN 5120-00-221-1117
• Lifetime Casting Warranty
• 65,000 PSI Tensile Ductile Iron Body Parts
• Interlocking Swivel Base With 360 Degree Motion
• 2 Lockdowns
• No Pinch Main Screw Handle
• Replaceable Hardened Steel Serrated Jaws
• Continuous Rolled Thread on Main Screw

Overall dimensions*12 x 9 x 20.5 inches (H x W x D)
*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Yost Vises manufactures a wide range of vises, including bench-mount, woodworking, and drill-press styles. The company, founded in 1908, is headquartered in Pottstown, PA.
